How to convert fundamental tone into cents

OpenMusic
#1

Hi everyone,

Urgent help needed!

We have two programs: Audioskulpt and OpenMusic

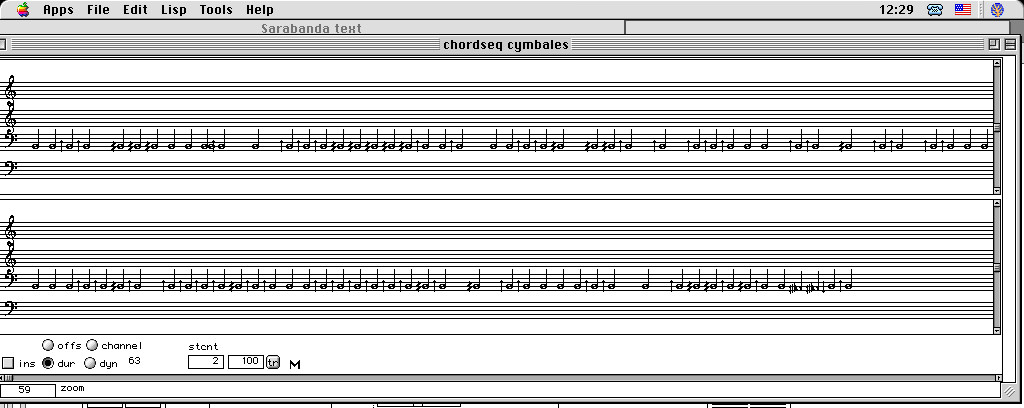

In Audioskulp we extact (cut out) the fundamental tone and export it to OpenMusic where it appears in the form of notes (please see attached illustration)

Now, the question is how do we convert these notes into cents that the final outcome looks like this:

(4700)

((4702) (4706) (4716) (4734) (4744) (4750) (4742) (4712) (4688) (4694 4708) (4718) (4712) (4716) (4722) (4730) (4744) (4740) (4742) (4744) (4740)

(4730) (4708) (4714) (4700) (4706) (4716) (4736) (4738) (4752) (4738) (4732) (4720) (4722) (4736) (4726) (4708) (4712) (4716) (4732) (4748) (4736)

(4720) (4732) (4736) (4710) (4702) (4704) (4706) (4718) (4730) (4750) (4736) (4728) (4724) (4720) (4736) (4740) (4730) (4724) (4700) (4704) (4714)

(4716) (4722) (4734) (4730) (4726) (4738) (4728) (4744) (4728) (4720) (4702) (4696) (4710) (4714) (4724) (4710) (4734) (4748) (4738) (4734) (4742)

(4720) (4704) (4656) (4648) (4682) (4718))

Any help would be much appreciated!

Thanks


#2

Can you precise your problem ?

If you imported the data as notes into a chord-seq, in principle you may just need to read/connect the lmidic output of this chord-seq to get the midicent list…



#3

Thanks a lot for the respond, Jean

Could you specify what is “lmidic output” and how to read/connect it in order to get the midicent list.

Thank you

#4

lmidic is the slot of the chord-seq containing the pitch data

see the OM user manual : http://support.ircam.fr/docs/om/om6-manual/co/Note-Chord-Chord-seq.html

[evaluating box outlets: http://support.ircam.fr/docs/om/om6-manual/co/Evaluation.html]







#5

Hi,

Thanks for the links, they are very helpful.

I’ll look into it, and if any questions - will revert back to you.

Regards
